How to Avoid Adhesive Overflow in Precision Die-Cutting: A Complete Process Guide

Precision die-cutting is the backbone of modern adhesive tape conversion, but even experienced engineers face a recurring nightmare: adhesive overflow. When excess adhesive squeezes beyond the intended cut line, it contaminates mating surfaces, blocks pick-and-place nozzles, and triggers costly rework in electronics, automotive, and appliance assembly lines.

In this guide, we break down the root causes of adhesive overflow in precision die-cutting, share proven process controls, and show how the right material-tooling pairing eliminates the problem before it starts.

1. What Is Adhesive Overflow and Why Does It Matter?

Adhesive overflow occurs when pressure from the die-cutting process forces adhesive to extrude past the blade edge, creating a thin, sticky residue along the perimeter of the finished part. In high-tolerance applications, even a 0.1 mm overrun can:

• Compromise bond strength by preventing full surface contact
• Attract dust and particulates in cleanroom environments
• Interfere with automated placement on SMT lines and robotic assembly cells
• Reduce peel adhesion by up to 30% in lap-shear testing (per ASTM D1002)

For automotive interior trim, consumer electronics bezels, and medical device housings, these defects are not cosmetic—they are functional failures.

2. Root Causes of Adhesive Overflow

2.1 Excessive Die Pressure

The most common culprit. Over-compressing the tape stack squeezes the adhesive layer outward. Ideal penetration depth depends on substrate thickness and adhesive formulation:

• Thin PET carriers (25–50 µm): Penetrate 70–80% of total stack height
• Foam tapes (0.5–2.0 mm): Penetrate 60–70% to allow elastic recovery
• Film-supported acrylics: Use kiss-cut configuration; full cut-through increases overflow risk by 40%+

2.2 Incorrect Blade Geometry

Blade angle, bevel direction, and edge radius directly influence cut quality:

• Standard bevel (30–45°): Best for general-purpose films and non-woven carriers
• Reverse bevel (45–60°): Preferred for thick foam tapes; reduces lateral push
• Mirror-finish edges (Ra ≤ 0.1 µm): Minimize adhesive drag and fiber pull

2.3 Adhesive Rheology Mismatch

High-flow adhesives (soft tackified acrylics, hot-melt PSA) are more prone to cold-flow extrusion under pressure. Low-Tg (glass transition) formulations require tighter process windows.

2.4 Inadequate Release Liner Design

Silicone-coated release liners with uneven coating weight or inadequate anchorage can delaminate during cutting, allowing adhesive to smear onto the die face and redeposit on subsequent parts.

3. Key Technical Parameters for Overflow-Free Die-Cutting

The following TDS-style parameter table summarizes the critical controls we implement at CoreBond Tape to maintain ≤0.05 mm edge overrun on 95% of production lots:

Parameter	Recommended Range	Test Method	Impact on Overflow
Die Penetration Depth	60–80% of stack height	Digital height gauge ±5 µm	Direct: over-penetration = extrusion
Blade Edge Angle	30–60° (material-dependent)	Optical microscope / SEM	Steep angles reduce lateral adhesive push
Cutting Speed	15–45 m/min (kiss-cut)	Tachometer / encoder feedback	High speed increases shear heating and flow
Anvil Hardness	Shore D 75–85	Durometer ASTM D2240	Soft anvils allow over-penetration
Adhesive Coat Weight	±5% of nominal	Gravimetric (g/m²)	High coat weight raises overflow probability
Adhesive Viscosity @ RT	5,000–25,000 cP	Brookfield viscometer	Low viscosity = high flow under pressure
Release Liner Peel Force	10–50 g/25mm	ASTM D3330 (180° peel)	Too low = liner lift during cutting
Operating Temperature	18–24°C (±1°C stability)	Thermocouple / IR camera	Heat increases adhesive tack and flow

4. Process Controls That Eliminate Overflow

4.1 Optimized Kiss-Cut Configuration

For double-sided tapes and transfer adhesives, kiss-cutting (cutting through the tape without cutting the release liner) is the gold standard. Key settings:

• Set blade overhang to 0.02–0.05 mm above the liner surface
• Use segmented anvil rolls with vacuum hold-down to prevent web shift
• Maintain constant web tension at 15–25 N/m to eliminate wrinkling

4.2 Chilled Die Technology

For high-tack acrylic and rubber-based PSAs, we deploy liquid-cooled die plates maintained at 10–15°C. Lowering the adhesive temperature by 8–12°C reduces cold-flow extrusion by up to 60% without impacting tack or peel performance. For formulations that must survive extreme service temperatures, our high-temperature double-sided tape selection guide covers the matching process controls.

4.3 Inline Vision Inspection

Every CoreBond Tape production line integrates AOI (Automated Optical Inspection) with 5 µm resolution. The system flags edge-overrun parts in real time, triggering automatic reject gates. This achieves ppm-level defect rates on automotive-grade lots.

5. Material Selection: Matching Adhesive to Application

Not all adhesives behave the same under die-cutting stress. If you are still shortlisting materials, start with our guide to choosing industrial double-sided tape for metal and plastic bonding. Here is a quick-reference guide:

Adhesive Type	Die-Cutting Behavior	Best For	Overflow Risk
Acrylic PSA (solvent)	Clean cut, moderate flow	Electronics, general industrial	Low–Moderate
Acrylic PSA (emulsion)	Soft edge, higher flow	Labels, temporary bonding	Moderate–High
Silicone PSA	Very low tack, clean cut	High-temp, medical, silicone surfaces	Low
Rubber-based PSA	High tack, high flow	Foam bonding, automotive trim	High
UV-curable PSA	Rigid after cure, no flow	Structural bonding, display assembly	Very Low

When overflow tolerance is critical, specify a cross-linked acrylic or UV-curable formulation with Shore A hardness above 65 after cure.

6. Why Choose CoreBond Tape for Precision Die-Cutting

At CoreBond Tape, adhesive overflow is not a problem we solve after the fact—it is a variable we eliminate at the design stage.

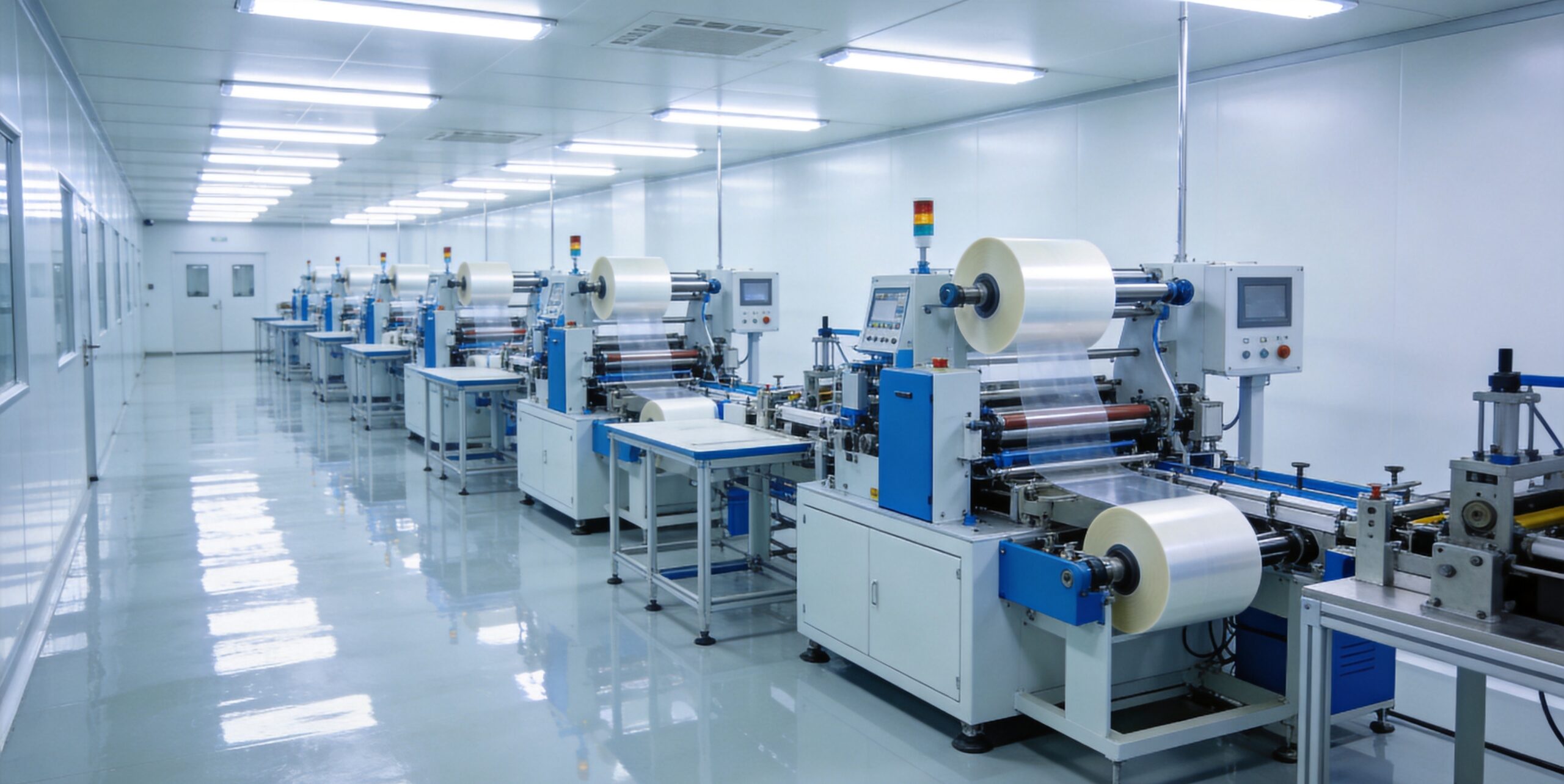

• ISO 7 Cleanroom Slitting & Die-Cutting: Particulate control down to 0.5 µm ensures adhesive surfaces remain contamination-free
• ±25 µm Dimensional Tolerance: Class-leading precision on parts as small as 2 mm × 2 mm
• In-House Tooling Design: Custom die geometries optimized per adhesive rheology profile
• Full TDS & RoHS Documentation: Every lot ships with peel adhesion, shear strength, and temperature-resistance data
• Prototype-to-Production Scalability: From 100-piece NPI runs to 500K+ monthly volumes with identical process parameters

7. Common Mistakes Engineers Make (And How to Avoid Them)

• Mistake 1: Using the same die for foam and film tapes. Fix: Foam requires reverse-bevel dies with larger clearance; film needs sharp, shallow-angled blades.
• Mistake 2: Ignoring adhesive storage temperature. Fix: Store rolls at 15–25°C; cold adhesives become brittle and fracture; hot adhesives flow excessively.
• Mistake 3: Selecting liner peel force based on hand-feel alone. Fix: Always request TDS peel data at 180° and 90°; match to your placement equipment’s pick force.

8. Actionable Recommendations for Your Next Project

1. Request A-B testing samples with two adhesive formulations at the same coat weight to compare edge quality.
2. Specify tolerance class in your RFQ: ±50 µm (standard), ±25 µm (precision), or ±10 µm (micro-die-cut).
3. Ask for process capability data (Cp/Cpk) from your converter—values above 1.33 indicate statistically controlled overflow.
4. Demand inline AOI reports for first-article inspections; do not rely on manual sampling alone.

---

Need a custom die-cut sample or technical consultation for your project? Contact the CoreBond engineering team today for free samples and fast quotes. More die-cutting and material-selection guides live in our Product & Tech collection.
